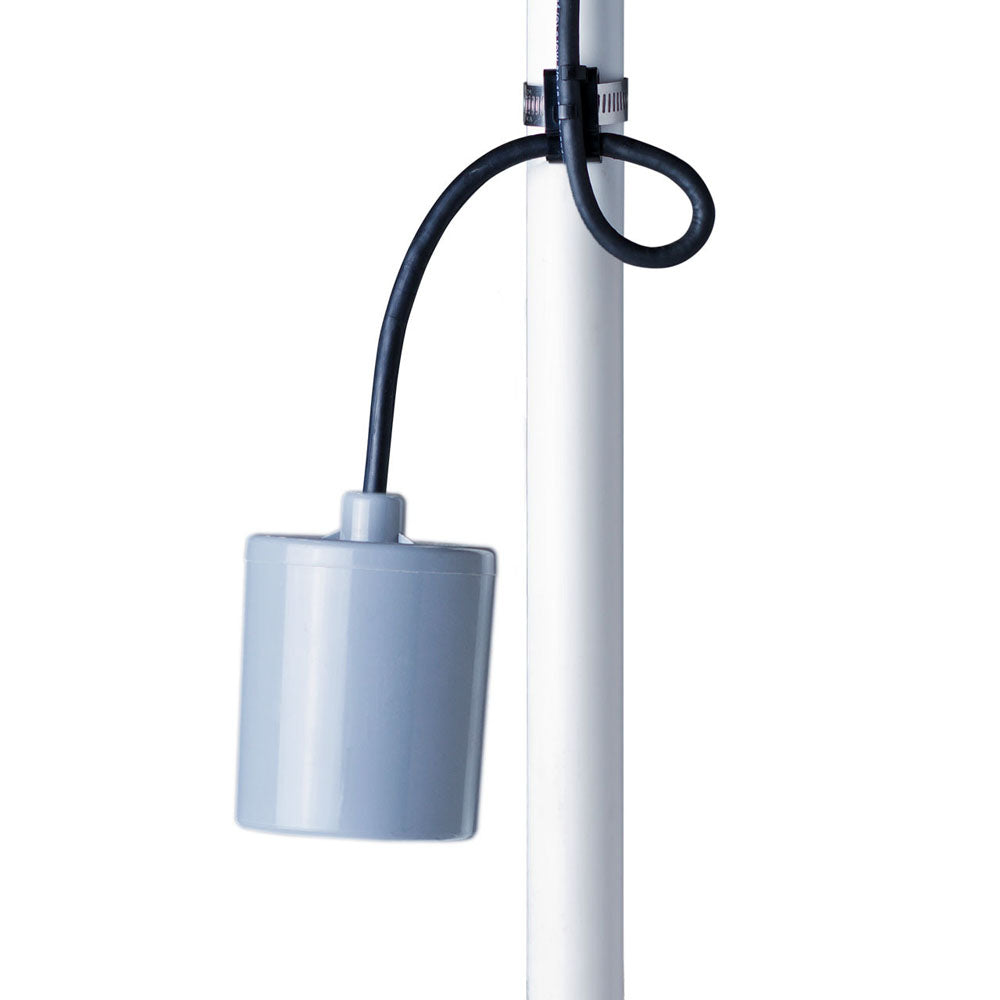

Pumpmaster Pump Up Float Switch

Description

Pumpmaster Pump Up Float Switch

SJE PumpMaster pump switch. The SJE PumpMaster pump switch provides automatic control of pump in potable water, water, and sewage applications.

Manufacturer: SJE Rhombus Controls
Model: 15PMUWOP
Product Information:

• Pumpmaster is the most widely used float switch
• This mechanical switch uses a large steel ball that opens and closes the switch contacts, providing a consistent, positive contact action, and is NSF approved for drinking water use.

Features:

• • Pump up is normally closed contacts for filling in potable water, water, and sewage applications.
  • UL Recognized; CSA Certified.
  • Controls pumps up to ½ HP at 120 VAC; 1 HP at 230 VAC.
  • Has a 15′ cord without plug

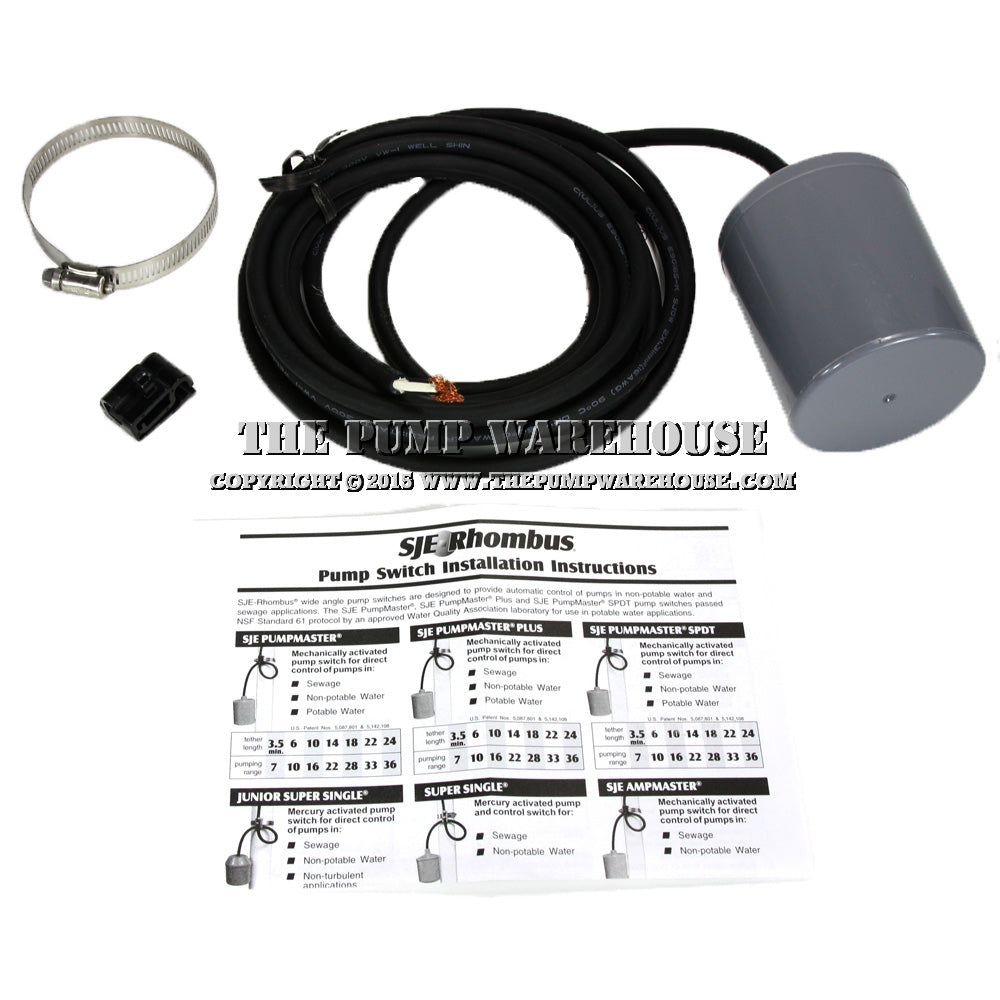

  • Includes Owner’s Manual/Installation
  • Passed NSF standard 61 protocol by an approved Water Quality Association laboratory
  • Mechanically-activated
  • Heavy-duty contacts ensure long switch life
  • Not sensitive to rotation or turbulence

Specifications:

• Pumping Range: 7 to 36 inches
• Float: 3.05 inch diameter x 3.56 inch long, high impact, corrosion resistant, PVC housing for use in sewage and water up to 140 degrees F.
• Note: This switch must be used with pumps that provide integral thermal overload protection.

PUMP UP is normally closed contacts for filling in potable water, water, and sewage applications.
