PumpSaver 233 P-1.5 Pump Monitor

The Model 233P-1.5 single-phase PumpSaver Plus is a pump monitor designed to protect single-phase pumps from dry-well, dead-head, jammed impeller, rapid
cycle, overvoltage and undervoltage conditions.

Manufacturer: SymCom
Model: 233 P-1.5
Product Information:

• The Model 233P-1.5 single-phase PumpSaver Plus is a pump monitor designed to protect single-phase pumps from dry-well, dead-head, jammed impeller, rapid cycle, overvoltage and undervoltage conditions. The PumpSaver Plus Model 233P-1.5 protects 230 volt, 2 or 3 wire, 1/3 to 1.5 hp pumps.

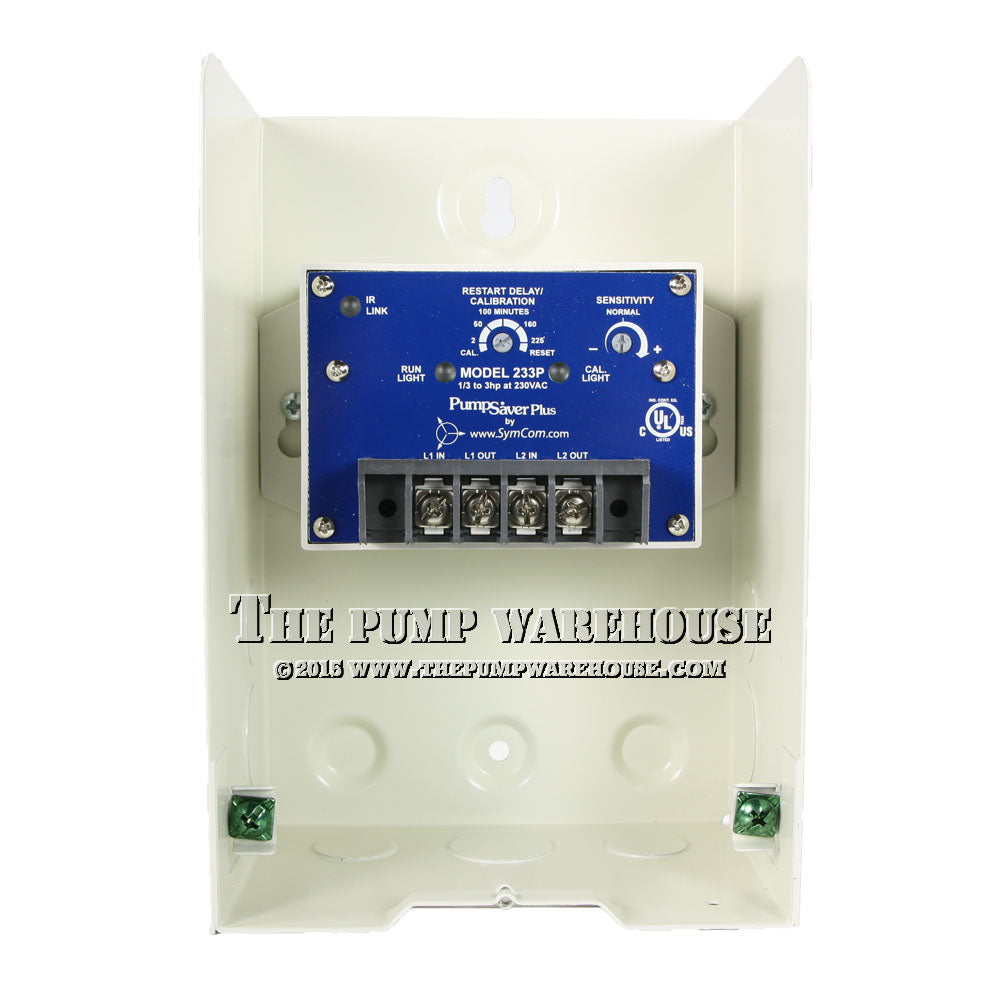

• A calibration adjustment allows the Model 233P to be calibrated to your specific pumping applications, thereby reducing the possibility of false or nuisance tripping. A proprietary microcontroller based voltage, power factor and current-sensing circuit constantly monitors for power fluctuations, overcurrent and underload conditions. When an abnormality, such as loss of suction, is detected, the PumpSaver Plus deactivates its output relay and directly disconnects the pump motor. The PumpSaver Plus then begins its user-selectable “Restart Delay” (dry-well recovery) timer. When the timer expires or power is removed and reapplied, the PumpSaver Plus reactivates its output relay and allows the pump to turn back on.

Application-Single Phase Only:

• All submersible pumps, regardless of motor manufacturer
• Centrifugal pumps
• Circulating pumps
• Cooling pumps
• Environmental pumps
• Residential water wells
• Commercial water wells
• Irrigation wells
• Golf course systems

Protects From:

• Dry well (run dry condition)
• Flow restrictions (dead head)
• Over current (jammed impeller)
• Over voltage
• Under voltage
• Rapid cycling

Features:

• Can be calibrated to specific pump / motor combinations and various conditions
• Will work with destaged pump models ending in 05R

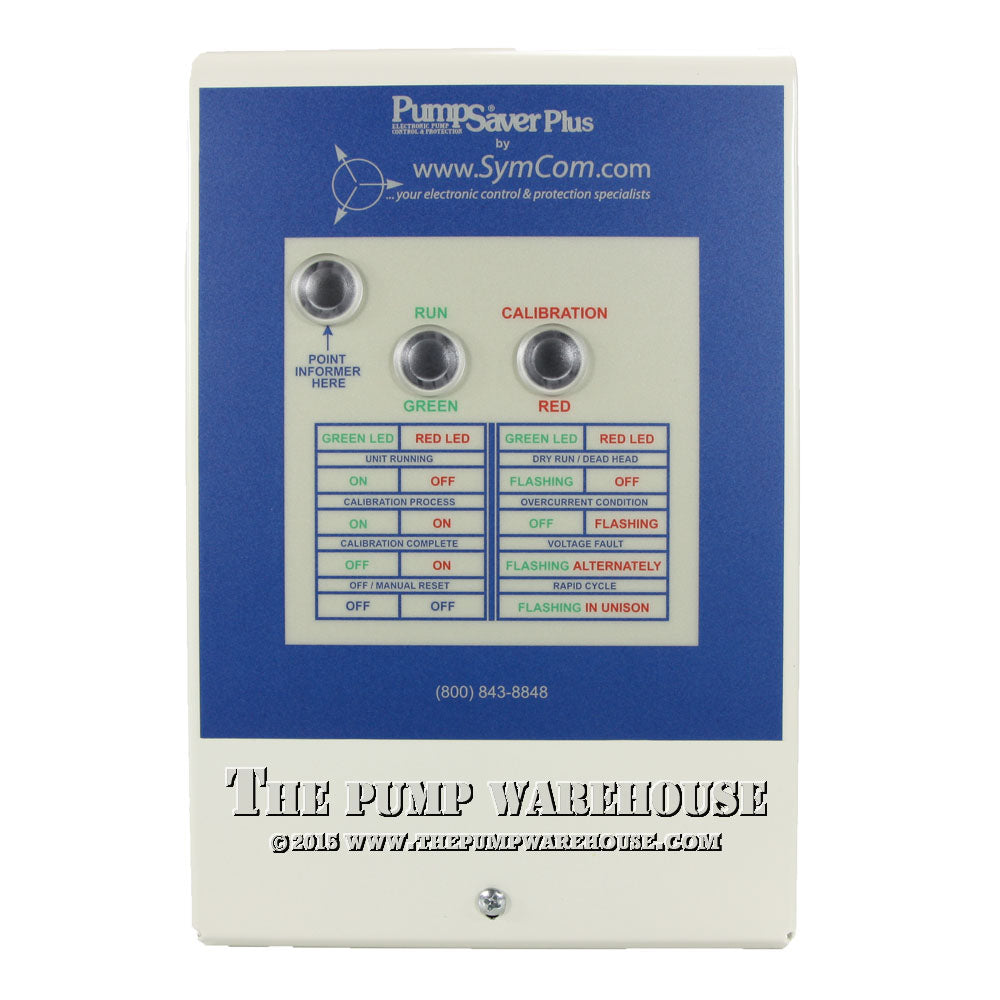

•  “Run Light” indicates the unit is functioning
• “Run Light” and “Cal. Light” used as diagnostic indicators
• Restart delay can be set up to 225 minutes or placed in manual reset model
•  Micro-controller provides better accuracy and higher reliability than analog designs
• Plus units feature more data storage memory which is viewable using an Informer
• Sensitivity adjustment for dry well trip point
