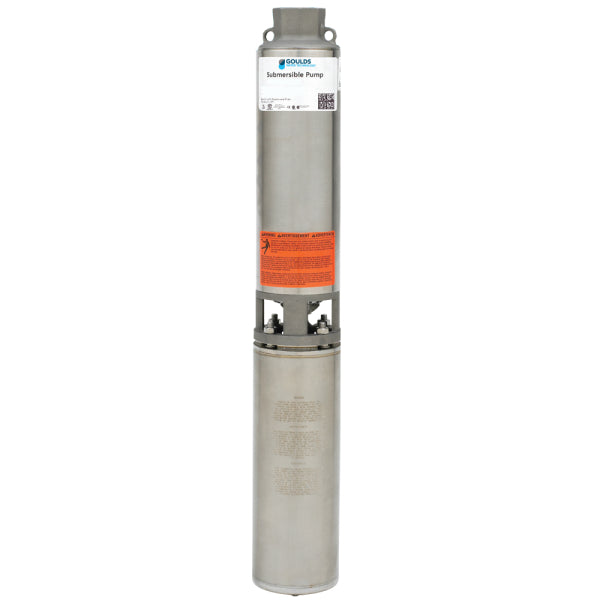

Goulds CS Submersible Pump 1 HP 10 GPM - 10CS10412

Goulds CS Submersible Pump 1 HP 10 GPM

Submersible water well pump that features abrasive handling construction, stainless steel casing, and a check valve that can be easily removed for drain-back systems or replacement.



Manufacturer: Goulds

Model: 10CS10412

Horsepower: 1

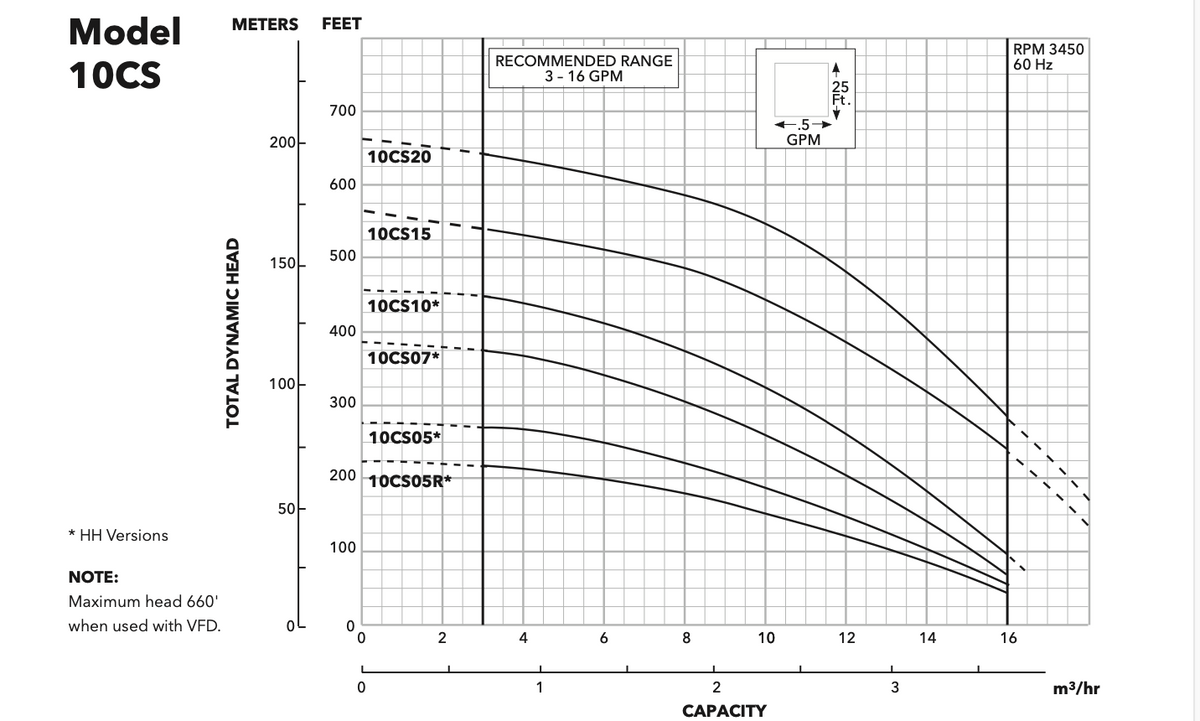

GPM: 10

Voltage: 230V, 60HZ

Phase: Single-Phase, 3-wire



FEATURES

Powered for Continuous Operation: All ratings are within the working limits of the motor as recommended by the motor manufacturer. Pump can be operated continuously without damage to the motor.

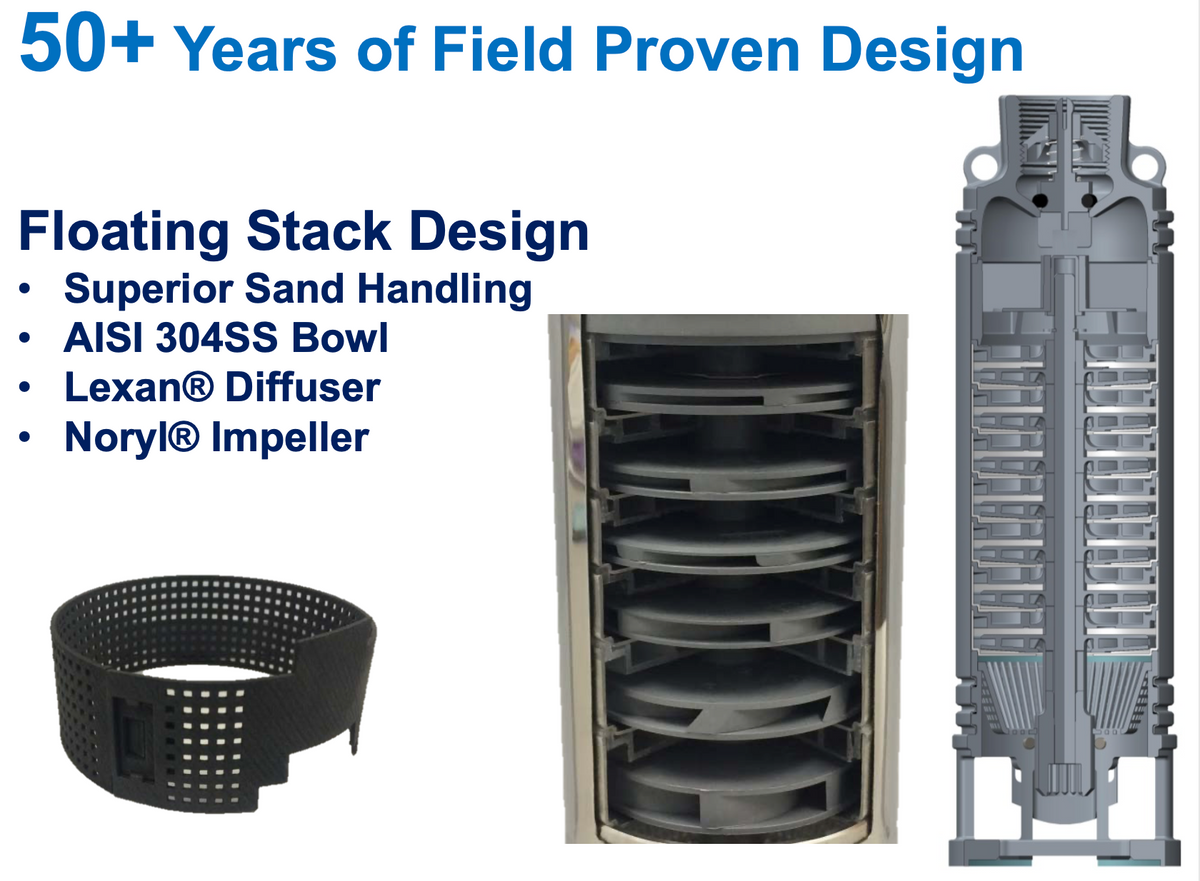

Sand Handling Design: Our face clearance, floating impeller stack has proven itself for over 50 years as a superior sand handling, durable pump design.

FDA Compliant Non-Metallic Parts: Impellers, diffusers and bearing spiders are constructed of glass filled engineered composites. They are corrosion resistant and non-toxic.

Discharge Head: Cast 303 stainless steel for strength and durability. Two cast-in safety line loops for installer convenience.

Motor Adapter: Cast 303 stainless steel for rigid, accurate alignment of pump and motor. Easy access to motor mounting nuts using standard open end wrench.

Stainless Steel Casing: Polished stainless steel is strong and corrosion resistant.

Hex Shaft Design: Six sided shafts for positive impeller drive.

Engineered Polymer Bearings: The proprietary, engineered polymer bearing material is strong and resistant to abrasion and wear. The enclosed upper bearing is mounted in a durable Noryl® bearing spider for excellent abrasion resistance.
Check Valve: Screws into discharge head from the top, easily removed for drain-back systems or replacement without disassembling the pump. Spring loaded, o-ring poppet design for positive seal in all conditions.

Crimped Design: For strength, will not separate in the harshest conditions.

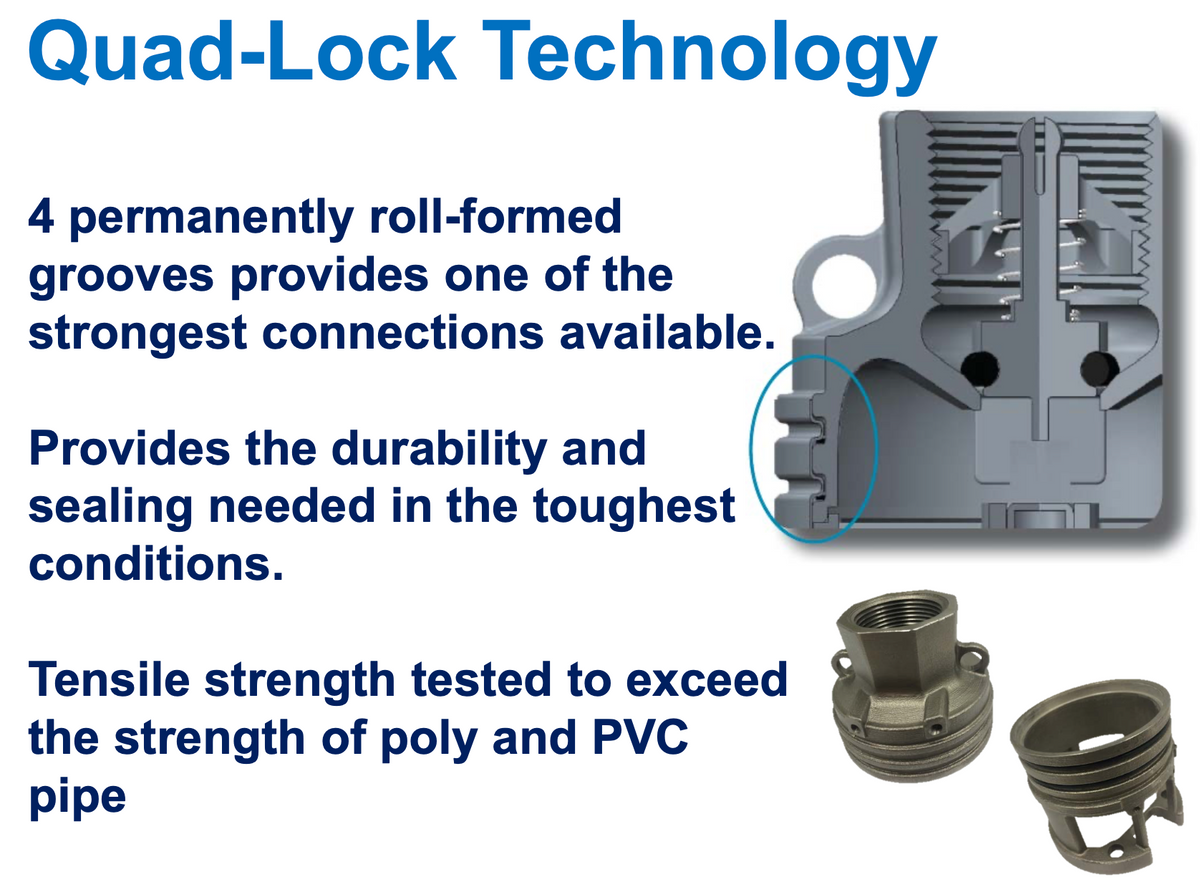

Quad-Lock technology: 4 Permanently roll-formed grooves provides the durability and sealing needed in the toughest conditions.



NEMA MOTOR

• Corrosion resistant stainless steel construction.
• Built-in surge arrestor is provided on single phase motors through 5 HP.
• Stainless steel splined shaft.
• Hermetically sealed windings.
• Replaceable motor lead assembly.
• NEMA mounting dimensions.
• Control box is required with 3 wire single phase units.
• Three phase units require a magnetic starter with three leg Class 10 overload protection.
