Franklin Electric Pumptec – Motor Protection

Description

Franklin Pumptec

Pumptec is a microcomputer-based pump protection device. It monitors motor load and power line conditions to provide protection against dry well conditions, waterlogged tanks, and abnormal line voltage conditions. Pumptec interrupts power to the motor whenever the load drops quickly or below a preset level. Indicator lights on the cover provide complete system status.

Manufacturer: Franklin Electric
Model: 5800020610
Additional Information:

• Pumptec is a microcomputer-based pump protection device.
• It monitors motor load and power line conditions to provide protection against dry well conditions, waterlogged tanks, and abnormal line voltage conditions.
• Pumptec interrupts power to the motor whenever the load drops quickly or below a preset level. Indicator lights on the cover provide complete system status.

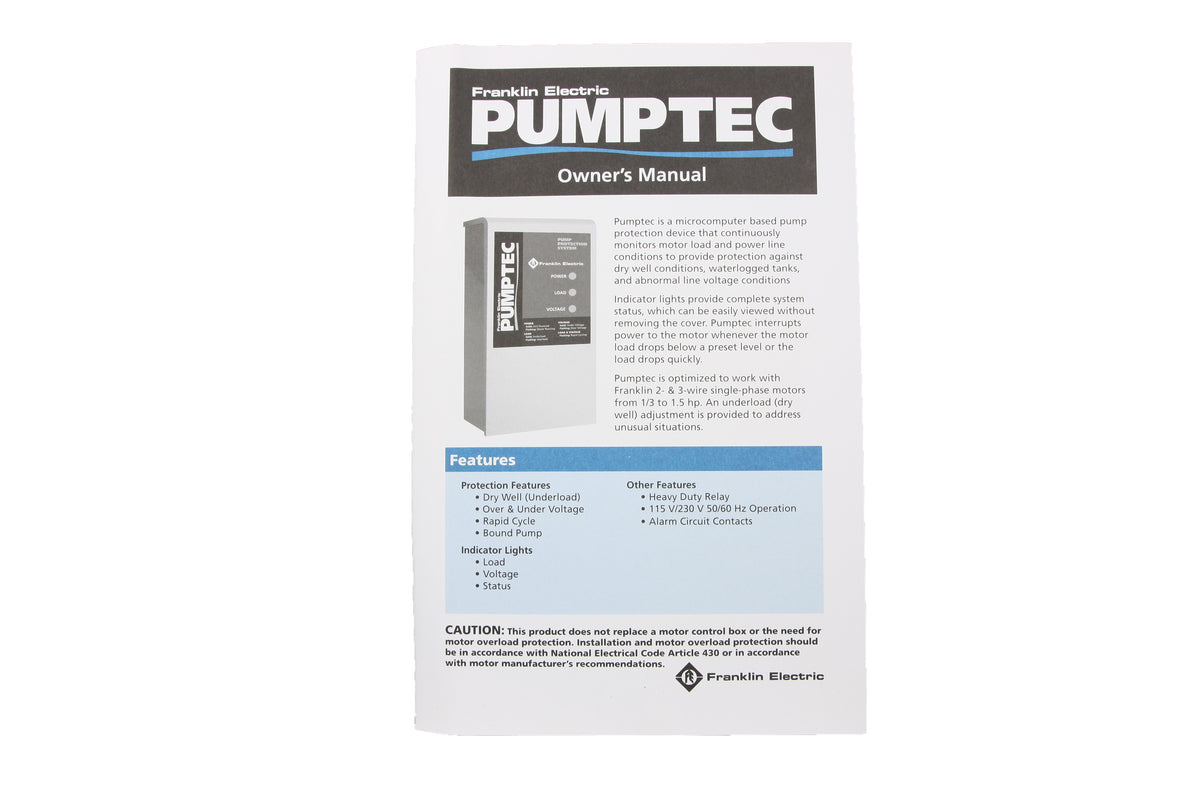

• Owner’s manual and installation instructions are included.
• For 2- & 3-wire single-phase motors, 1/3 to 1.5 HP

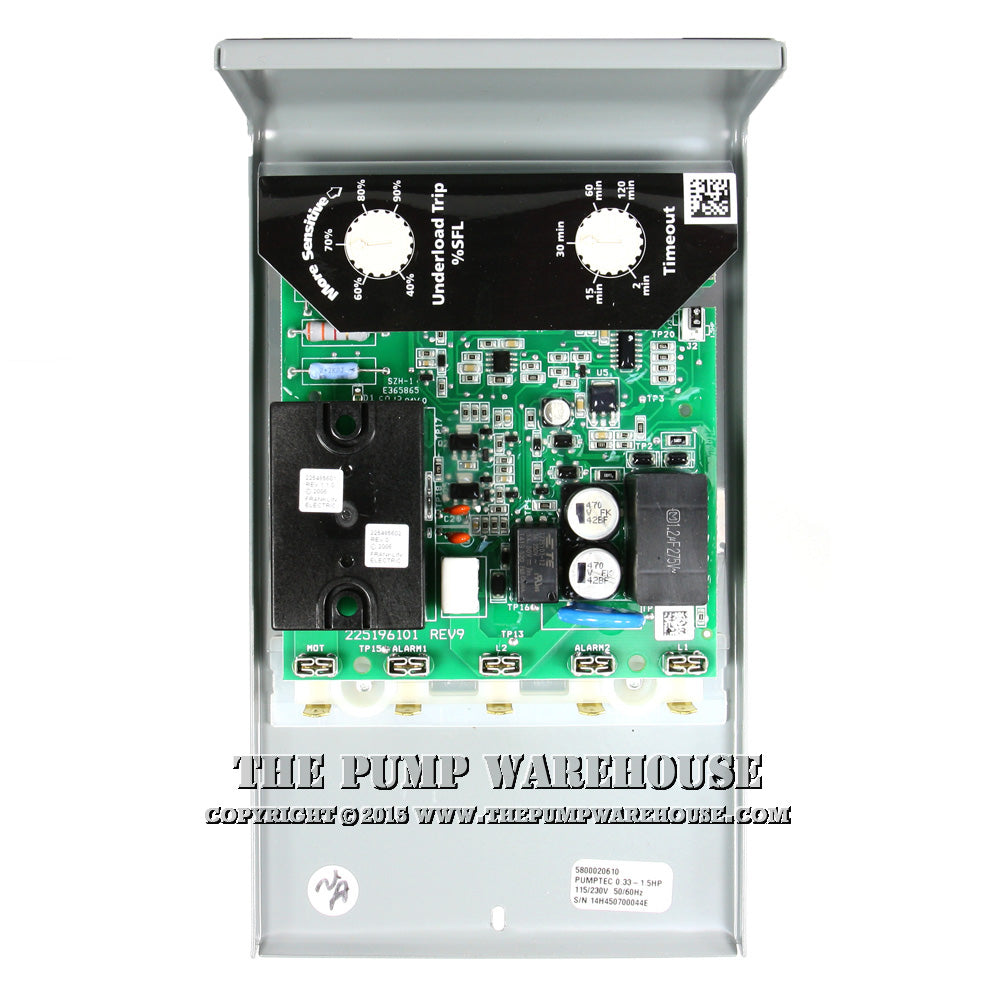

• Easily adjustable sensitivity settings

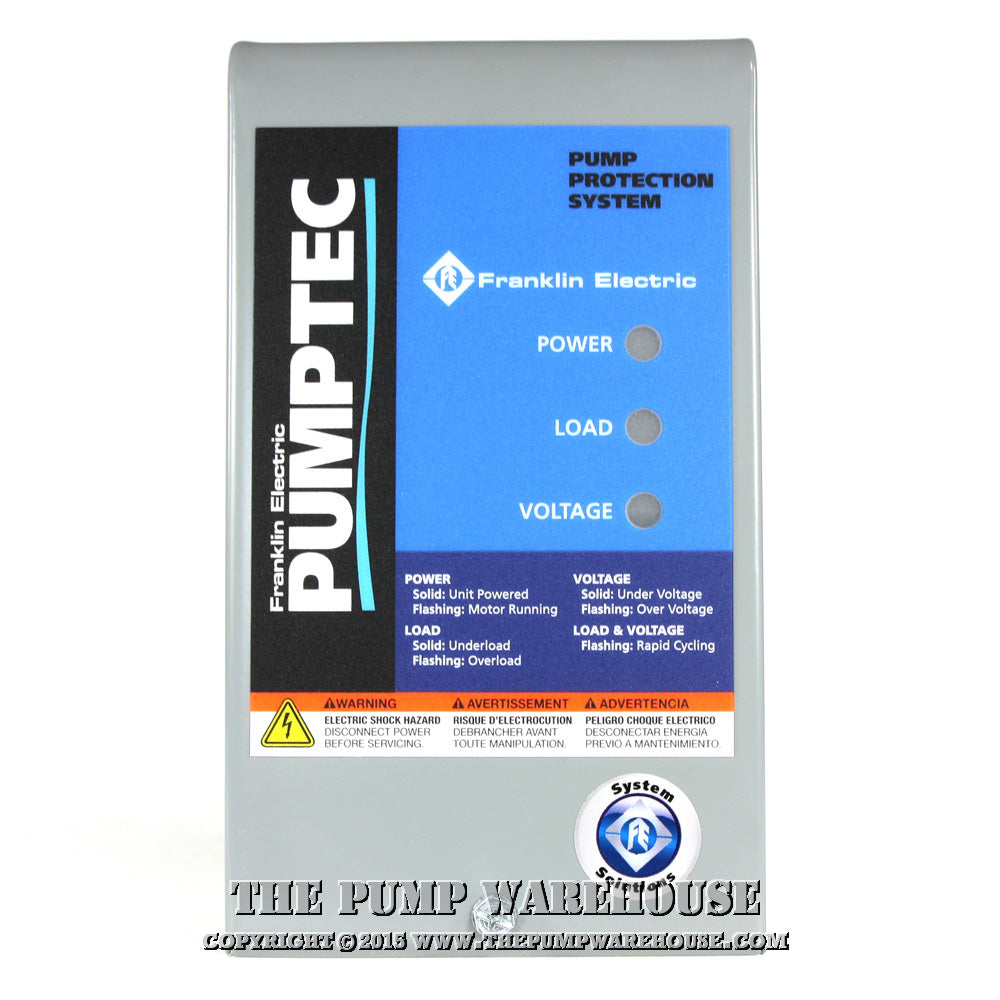

• Run and fault indicator lights
• Heavy duty relay
• Alarm circuit contacts
• Remote control options
• UL/CSA Listed

Rest Time: Adjustable (2-120 Minutes)
HP Rating: 1/3 to 1.5 HP
Voltage: 115/230V, 60 HZ
Phase: Single-Phase

Protects against:

• Air or Gas Locked Pump (Cavitation)
• Broken Shaft or Coupling
• Clogged Well Screen
• Drop in Water Level
• Faulty Check Valve
• High Voltage
• Low Voltage
• Low Yield Wells
• Rapid Cycling
• Water Logged Tank
• Worn Pump Parts
